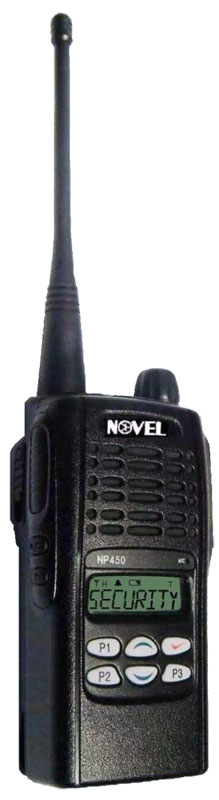

NP65 – NP150 – NP450

Terrestrial VHF / UHF handheld two-ways radios NP65 NP150 NP450

Small
Light
Rugged
Reliable

Approval N°350243 (NP65)
Approval N°350225 (NP150)
Approval N°350226 (NP450)

  • 255 Channels
    •
  • Li-Ion Battery
    •
  • Programmable function keys
    •
  • 5-Tone Selective call
    •
  • Scrambler VOX
    •
  • Emergency key
    •
  • CTCSS – DCS
    •
  • IP65 and MIL STD 810F
    •



FEATURES AND SPECIFICATIONS

General
Frequency NP65 : 66 – 87,5 MHz (VHF)
NP150 : 136 – 174 MHz (UHF)
NP450 : 403 – 470 MHz (UHF)
Channel spacing 12,5 – 25 KHz
Battery Li-ion 1800mAh
Battery life 13 hours with 5/5/90 profile
Dimensions 54 (W) x 114 (H) x 32 (D) mm
Weight 283 gr
Package content Handheld radio, Li-Ion battery, battery charger, belt clip, antenna and user manual
Optional Man down function
Receiver and audio
Sensitivity (12dB SINAD) ≤ 0,25µV
Channel selectivity > 60 dB
Audio power 1W
Audio distortion < 5% a 1KHz
Transmitter
RF power 1/5W (VHF) or 1/4W (UHF)
Spurious emission < -36 dBm
FM noise > 40 dB
Audio distortion < 5% a 1KHz
Accessories
NR-76 1800mAh Li-Ion Battery
NC-69 Rapid charger  220Vac
NR-75 Belt clip
NM-61 External mic/speaker
NM-62 External mic/speaker (waterproof)
NA-63 Ear microphone PTT
NA-64 Earphone-mic security kit
NR-66 Soft case with strap
NR-67 Leather case  with belt clip  and strap
ES-H079 Noise cancelling headphones with PTT

DOCUMENTS

Datasheet radio Novelradio NP65 NP150 NP450
