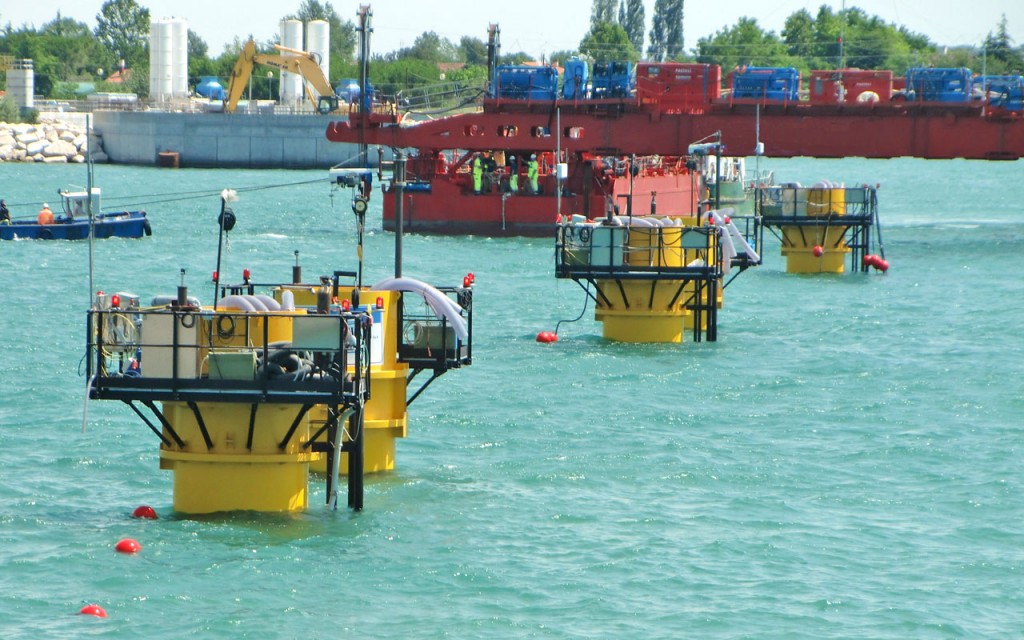

Mose Venezia submerged towers

Design and implementation of digital radio system at Mose Venezia

  1. General

The designed system is based on two repeaters for each “tank”.  One dedicated to the radio coverage inside the tank  and the other one to connect the tank with all the other tanks and with the external environment in which supervisory and emergency teams operate.

Each UHF or VHF frequencies can be used, it is just a regulation issue and not technologic matter. In any case two pairs of frequencies are needed.

One pair will be dedicated to the distribution of the radio signal inside each tank. The related repeater may be suitably programmed to limit interferences from/to the outside environment.

The designed system allows communications in half duplex way  among all wireless users, (eg.: two frequencies but with Talk-Listen operation), wherever they are within the coverage area including obviously the ones inside the tanks.

  1. “Tank” environment

Indoor coverage is ensured by the presence of radiating cable which will be connected (with appropriate splitter and filter) to the repeater assigned to the inner cover.

It will be possible to expand the coverage outside of the tunnels by further radiating cable or antennas, if deemed subsequently necessary.

Therefore the communications between handsets will occur through this repeater, and will be always high quality.

The connection to the outside (with other tanks and external environment in general) it is ensured by a second apparatus which convoys towards a central repeater (to be installed separately from the six tanks) all the tank communications.

  1. External environment

The coverage area is ensured by the Master repeater, for which have to be found a suitable position.

The repeater brodcastes on the whole area communications from-to tanks and external environment, ensuring in this way the possibility of keeping all users connected to the same communication.

  1. Handheld radios

The handheld must be programmed with two channels, one for use inside the tanks, the other one in outdoor areas.

The user will have  to select manually the chosen channel.

  1. Operativeness

The system enables the spread of communications both inside and outside of the tanks.

Therefore anyone starting a communication from any point of the system  (internal or external tanks) can be heard by all the other users who, in turn, will interact in communication.

It is necessary that each user selects correctly the working channel based on its location (internal or external to the tank).




Mototrbo™ digital handheld radio

So incredibly thin and light, the SL4000 Series is the ultimate in discreet communications. Weighing as little as your average smartphone, its slim design and forward-thinking features such as Intelligent Audio, integrated Bluetooth and covert mode, enhance your level of professionalism and discretion so you can provide superior customer service and faster response times.


Mototrbo™ digital handheld radio

The DP4800 / DP4801 portable radio delivers unrivaled voice and data communications with optional integrated GPS and Bluetooth.

  • 1000 Channels
  • 5 rows color display
  • Li-Ion battery
  • IP55 and MIL STD 810C/D/E/F/G

Intrinsically safe Mototrbo™ digital handheld radio

The fully-featured DP4801 Ex ATEX certified portable radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.

  • 1000 Channels
  • Ex Li-Ion battery
  • IP67 and MIL STD 810D/E/F/G

Mototrbo™ digital mobile radio

This fully-featured mobile transforms your enterprise, delivering unrivaled voice and data communications with integrated Bluetooth audio and text messaging.


Digital repeater for Mototrbo™ radios

  • 100% continuous full duty cycle at 25-40W
  • Supports two simultaneous voice or data paths in digital TDMA mode
  • Integrated power supply
  • Operates in analogue or digital mode, bright, clear, colored LEDs indicate mode
