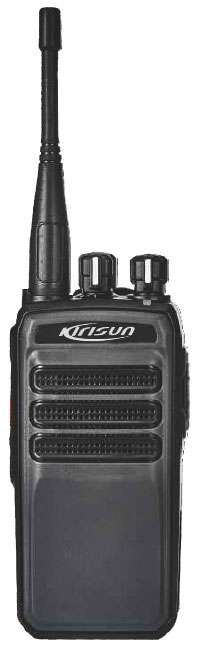

Handheld PMR446 DMR radio – License free
Kirisun DP405S
PMR446 DMR portable radio DP405S provides high audio quality, versatile functionality, durability, security, flexibility and doesn’t require frequency license.
KEY FEATURES AND BENEFITS
- Rugged design
- High quality/price ratio
- Dual mode analog/digital
- DMO 2-slot increases call capacity
- Free use, no license required
SPECIFICATIONS
Generali
| Frequency | 446 MHz (both analog and digital) |
| Channel capacity | 16 |
| Channel spacing | Analog: 12,5/25 KHz Digital: 12.5 KHz |
| Battery | Li-ion 2000 mAh |
| Battery life | up to 16 hours with 5/5/90 profile |
| Dimensions | 54 (W) x 163 (H) x 31 (D) mm |
| Weight | 275 gr |
| Working temperature | -30 / +60°C |
| Package content | Radio, Li-Ion battery, charger, belt clip, antenna and user manual |
Receiver
| Sensitivity | 0,25µV @12.5KHz |
| Intermodulation | 65dB |
| Adjacent channel selectivity | 60dB @ 12,5Khz |
| Spurious response rejection | 70dB |
| Audio distortion | <3% |
Transmitter
| RF Power | 0.5 W |
| Adjacent channel power | 60 dBm |
| Radiated spurious emission | -36 dBm <1GHz, -30 dBm >1GHz |
| FM noise | 45dB @ 25kHz ; 40dB @ 12.5KHz |
| Digital Vocoder | AMBE +2™ |
| Digital protocol | ETSI TS 102 361-1, -2, -3 |
DOCUMENTS
Datasheet handhel radio PMD446 DMR Kirisun DP405S
