Air Traffic Control/Professional Base Station VHF-AM

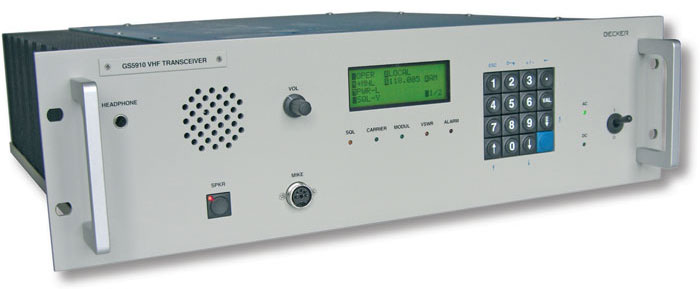

The BECKER GS5910 Ground Station is designed for operation in civil and military control towers, air traffic control centers, control shelters or on ships.

The GS5910 is equipped with a receiver guard channel scan mode. The frequency range extends from 118 to 144 MHz VHF in 25 kHz / 12.5 kHz, or 8.33 kHz channel spacing. The channel spacing is given by the frequency. The equipment automatically switches to the right selectivity and audio frequency bandwidth.

Up to 98 preset channels are available which can be programmed by the operator. To each channel the output power (high or low), the squelch threshold level and offset frequency can be stored. The guard frequency is stored in the 99th channel at any desired value.



Datasheet VHF transceiver base station Becker Avionics GS5910
