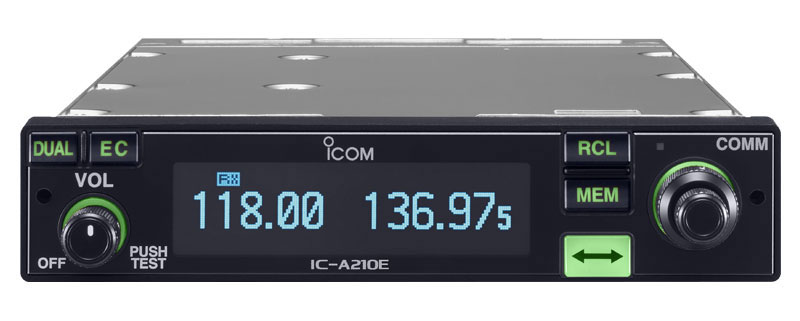

Mobile VHF two-way radio for aeronautic use ICOM IC-A210E #03
The IC-A210E has an organic light emitting diode (OLED) display. It’s fast and easy to select any of memory channels in the IC-A210E. The “flip-flop” arrow button switches between main and stand-by channels. The IC-A210E neatly fits inside the common mounting brackets used on most airplanes including Icom’s IC-A200. Two types of rear-panel adapters are included, allowing for streamlined plug-in connectivity.
FEATURES AND SPECIFICATIONS
General
| Frequency | TX/RX : 118.000-136.975 Mhz |
| Channel capacity | 10 memory, 200 memory group, 10 last used |
| Channel spacing | 8.33/25kHz |
| Power supply | 13.8 or 27.5 Vdc |
| Dimensions | 160 (W) x 34 (H) x 271 (D) mm |
| Weight | 1000 gr |
| Operating temperature | -20°C / +55°C |
Transmitter
| RF Power (Carrier) | 6 W |
Receiver and audio
| Sensitivity (AM) | -101dBm (12dB SINAD) |
| Selectivity | 8.33kHz : 6dB ±2.8kHz 25kHz : 6dB ±8.5kHz |
| Spurious emission | >70dB |
| Output audio power | 5W (external, 4Ω load) 60mW (headphone, 500Ω load) |
DOCUMENTS
Datasheet mobile radio ICOM IC-A210E
