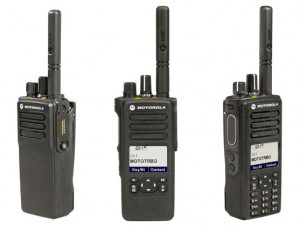

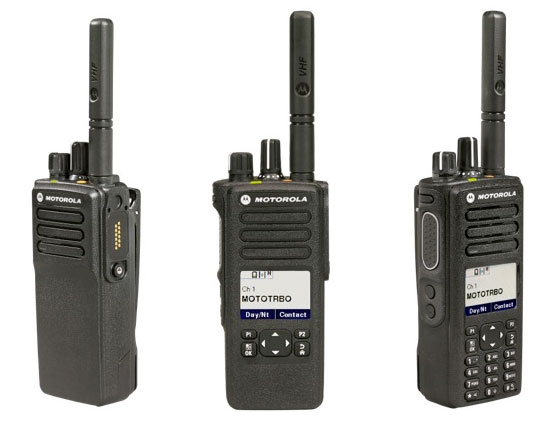

Digital two-ways handheld radio Mototrbo™ DP4000e series
DP4400e : without display, UHF or VHF
DP4600e : with display, UHF or VHF
DP4800e : with display and full keyboard, UHF or VHF
You’re Completely Connected
With this dynamic evolution of MOTOTRBOTM digital two-way radios, you’re better connected, safer and more productive. The DP4000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.
Here’s what’s new in these next-generation radios:
- Integrated accelerometer for optional Man Down*
- Bluetooth® 4.0*
- Indoor location tracking*
- Multiconstellation GPS localization*
- Integrated Wi-Fi®*
- Over-the-air software updates*
- Enhanced audio quality
- Improved expandability
- Better battery life (up to 28 hours)
- Better range (up to 8%)
- Better waterproofing (IP68)
- Improved HazLoc TIA4950 certification
- Vibrate alert with dedicated clip and battery
*Available for models DP4401e, DP4601e e DP4801e.
FEATURES AND SPECIFICATIONS
General
| Frequency | 136 – 174 MHz (VHF) |
| 403 – 527 MHz (UHF) | |
| Channel capacity | 32 (DP4400e) or 1000 (DP4600-4800e) |
| Channel spacing | 12,5 – 20 – 25 KHz |
| Battery | Li-Ion 1400/2100/2900/3000 mAh |
| Battery life | up to 29 hours with 5/5/90 profile |
| Dimensions | 55 (W) x 130 (H) x 34-41 (D) mm |
| Weight | 295-405 gr, depends on battery installed |
| Package content | Radio, Li-Ion battery, charger, belt clip, antenna, user manual |
Receiver
| Analogue Sensitivity (12dB SINAD) | 0,16µV typ. |
| Digital Sensitivity (5% BER) | 0,14µV typ. |
| Adjacent Channel Selectivity | 60dB @ 12,5Khz / 70dB @ 20/25 Khz |
| Spurious Rejection | 70dB |
Transmitter
| RF Power | 1/5W (VHF) or 1/4W (UHF) |
| Adjacent Channel Power | 60-70 dBm |
| Conducted/Radiated Emissions | -36 dBm <1GHz, -30 dBm >1GHz |
| Frequency Stability | ± 0.5 ppm |
