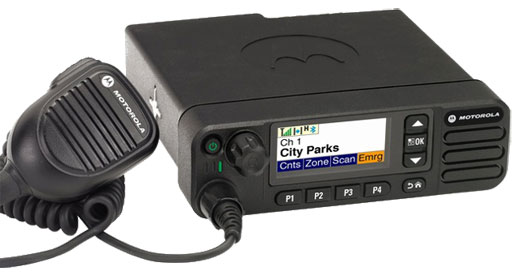

Mobile digital Mototrbo™ radio DM4000 series
DM4400 : version with 2 digits display and limited keyboard
DM4600 : version with LCD display and menu keyboard
From the delivery driver crisscrossing the city to the sanitation crew clearing streets, your employees work smarter and safer with the MOTOTRBO™ DM4000 Series mobile two-way radio.
This fully-featured mobile transforms your enterprise, delivering unrivaled voice and data communications with integrated Bluetooth audio and data*, integrated GPS*, text messaging and a full 4-line colour display with day/night mode to make reading work order tickets and text messages easier. You also get best-in-class audio that includes Intelligent Audio and a customisable voice announcement feature.
*DM4601 model only
FEATURES AND SPECIFICATIONS
| Frequency | 136 – 174 MHz (VHF) |
| 403 – 470 MHz (UHF) | |
| Channel capacity | 32 (DM4400) or 1000 (DM4600) |
| Channel spacing | 12,5 – 20 – 25 KHz |
| Dimensions | 175 (W) x 53 (H) x 206 (D) mm |
| Weight | 1,8 Kg |
| Package content | Microphone, mounting support, power cord and user manual |
| Sensitivity (12dB SINAD) | 0,22µV typical |
| Channel selectivity | 60dB a 12,5Khz / 70dB a 20/25 Khz |
| Audio power | 4W (internal), 7,5W (external – 8Ω), 13W (external – 4Ω) |
| Audio distortion | 3% typical |
| RF power (low) | 1/25W (VHF e 1 UHF) |
| RF power (high) | 25/45W (VHF) or 25/40W (1 UHF) |
| Adjacent channel power | 60-70 dBm |
| FM noise | 40-45 dB |
| Audio distortion | 3% |
DOCUMENTS
Datasheet mobile radio Motorola DM4000 series
Accessories for Motorola radio DM4000 series
